10A 3 Phase Prepaid Electricity Meters , 400imp/KWh STS Prepayment Meter

  • 1
  • 2
  • 3

Brand Name : stron

Model Number : STE18/STE38

Certification : STS

Place of Origin : China

MOQ : 10

Price : negotiated

Payment Terms : T/T

Supply Ability : 10000pcs per Month

Delivery Time : 15 work days

Packaging Details : Carton, 210*130*62mm

Phase Number : Three phase

Type : Electricity Meter

Charge Mode : Prepaid

IP Rating : IP54

Display : LCD

Frequency : 50-60Hz

Function : automatically connection/disconnection

Color : Blue

Product name : Prepaid Energy Meter

Rated Voltage : 220-240V/3*220V

Standard : STS Standard

Warranty : 2 years

OEM : Support

Certificate : ISO9001; ISO14001; STS Standard

Communication : LORA-RF supported

Vending Software : Supported

Recharge Token Length : 20 digits

Protection Class : IP54

Battery Life : 8 years

Current Range : (5A/80A)/(10A/100A)

Starting Current : (20mA)/(30mA)

Energy Constant : (1000imp/kWh)/(400imp/kWh)

Measurement Accuracy : Class 1.0

Mobile Payment Support : M-PESA, Alipay, MTN, Airtel, etc.

Overdraft Collection : daily/monthly optional

Data Storage Duration : 10 years

Anti-Tampering : Both with magnetic field/cover-opening detection; STE18-B cuts relay, STE38-G shuts valve when triggered

Recharge Method : (1. Stronpay Software; 2. 3rd-party/mobile payment)plus 3. AMI system remote recharge)

Contact Now

Split type Keypad STS Three Phase Prepaid electricity meter with CIU

Our Stron Smart STE38-S STS Standard Split Keypad Prepaid Three Phase Electricity Meter is composed of a prepaid keypad three phase electricity meter and a separate customer interface unit(CIU) .

When the meter runs out of power, a warning is issued, and the main system can remotely control the switch and disconnect the network, so the user can no longer use the power.Only when the user recharges and enters the corresponding TOKENS, the network will be connected remotely and the user can continue to use it. In this way, the user can avoid the situation that the user defaults on the electricity bill but continues to use electricity endlessly, and help the supplier to better manage the user.

Three solutions to recharge prepaid electricity meter
1.By Stronpay vending Software
➯ Via local sales point or handheld mobile vending unit

10A 3 Phase Prepaid Electricity Meters , 400imp/KWh STS Prepayment Meter

Operation of vending software
1. Login vending system
2. Meter number registration
3. Customer information registration
4. Price Setting
5. Open Account
6. Vending/Topping up meters
7. Get the Token
8. Input Token to meter with keypad
9. Recharging successfully

2.By the third party platform or local mobile payment with API
➪ Via mobile phone

API: Application Program Interface, which is the agreement connecting the third party APP and our Stronpay vending software.

10A 3 Phase Prepaid Electricity Meters , 400imp/KWh STS Prepayment Meter

10A 3 Phase Prepaid Electricity Meters , 400imp/KWh STS Prepayment Meter

The advantages to recharge with mobile payment:
✽ Users can top up electricity by mobile money without leaving the house.
✽ Users could check information by their telephone.
✽ It helps utilities for Revenue protection and consumer management.

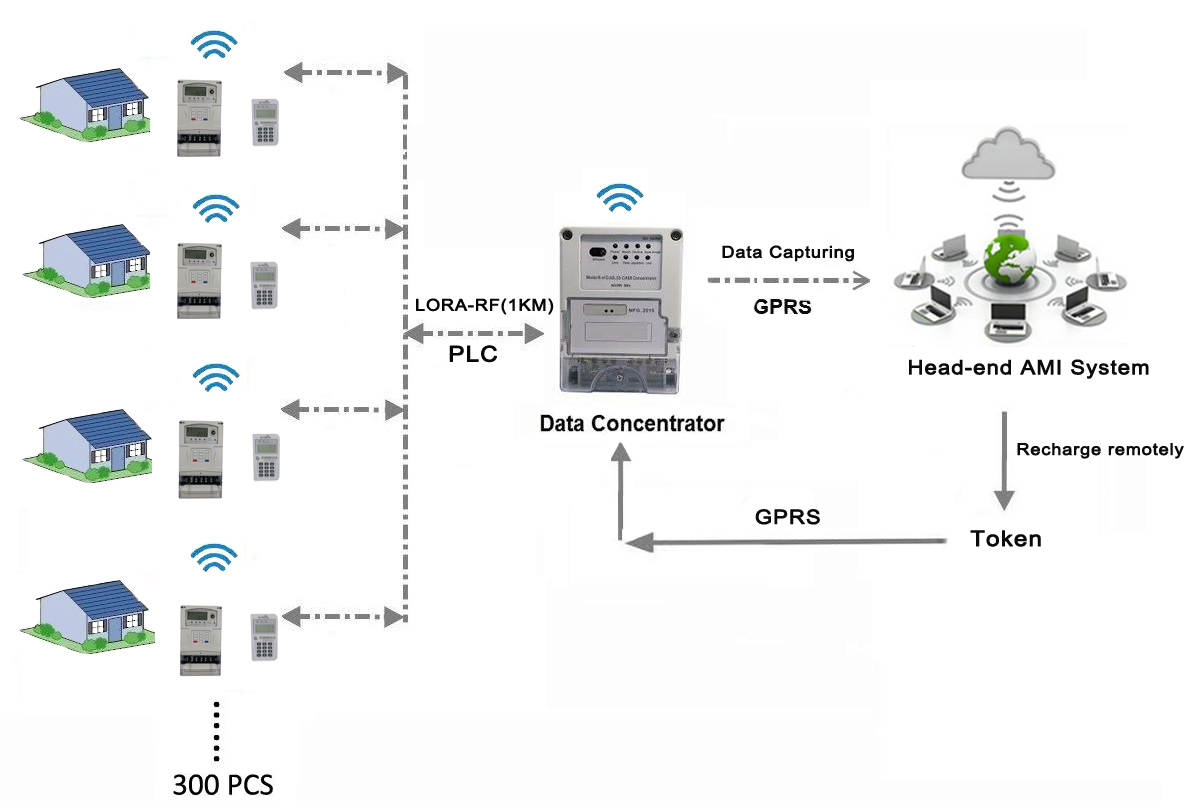

3.By the AMI System
➪ Recharge remotely via DCU and LORA-RF or PLC module

How to recharge by AMI System?

10A 3 Phase Prepaid Electricity Meters , 400imp/KWh STS Prepayment Meter

Main characteristics

  • 1. Meter Recharge By Inputting TOKEN
  • 2. Active energy measurement
  • 3. MD(maximum demand measurement)
  • 4. Auto scroll mode display
  • 5. Build-in relay control
  • 6. Event log
  • 7. Low Credit Alarm

Electrical Parameters

Nominal Voltage 3×230V
Working Voltage Range 70%~120%Un
Nominal Frequency 50-60Hz
Basic Current (Ib) 10A
Maximum Current (Imax) 100A
Starting Current (Ist) 30mA
Active Energy Constant 400imp/kWh
Active Energy Accuracy Class 1.0
Reactive Energy Accuracy Class 2.0
Power Consumption in Voltage Circuit <2W <8VA
Power Consumption in Current Circuit <1VA
Operation Temperature Range -25℃-70℃
Storage Temperature Range -40℃-85℃


Electric Magnetic Compatibility

AC Insulation Strength 4kV at 50Hz during 1min
Impulse voltage 1.2/50 us mains connections 8kV

Electrostatic Discharges

 Contact discharge 8kV
Air discharge 16kV
Electromagnetic RF Field 27MHz-500MHz 10V/m
100KHz-1GHz 30V/m
Fast transient burst test 4kV
Protection Class II

Electrical Functions

Function Details
Prepayment STS Standard, recharge by input 20digits TOKEN
Low credit alarm Alarm value can be set by inputting corresponding TOKEN
Prepaid and post-paid switch Meter can be switch to prepaid mode or post-paid mode
Non-return valve Non-return valve inside for preventing back-flow
Anti-tamper Meter will automatically close the valve after detection of magnetic field and open cover event
Step Tariff Step Tariff can be set by inputting corresponding TOKEN
Overdraft Collection Non- Revenue water (Overdraft) can be collected day by day or month by month
Communication The meter is available with AMI system through LORA RF or Bluetooth 4.0 on request
Information Inquiry Consumer could check the data like Credit Remain, Total Purchased and Total Credit by input the short code
Liquid Crystal Display 10A 3 Phase Prepaid Electricity Meters , 400imp/KWh STS Prepayment Meter

Meter Dimension

10A 3 Phase Prepaid Electricity Meters , 400imp/KWh STS Prepayment Meter
